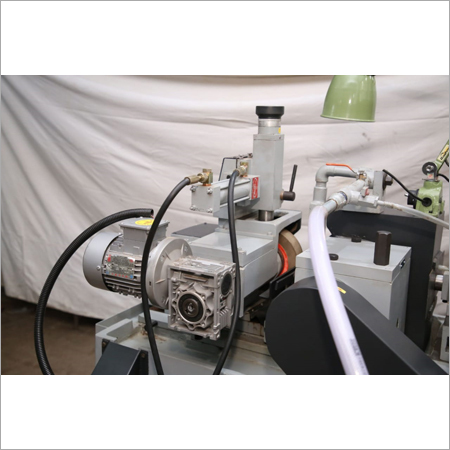

PUI CNC 80HD PUI CNC 80HD
PUI CNC 80HD
PUI CNC 80HD

PUI CNC 80HD

400000.00 - 500000.00 INR/Unit

Product Details:

  • Product Type Centerless Grinder
  • Computerized Yes
  • Automatic Grade Semi-Automatic
  • Control System PLC Control
  • Drive Type Electric
  • Feature Stable Performance, High Efficiency, Lower Energy Consumption, Low Noise, ECO Friendly, High Performance, Simple Control
  • Warranty 1 Year
  • Supply Ability : 30 Unit Per Year
  • Click to view more
X

Price And Quantity

  • 400000.00 - 500000.00 INR/Unit
  • 01 Unit

Product Specifications

  • PLC Control
  • Yes
  • 1 Year
  • Centerless Grinder
  • Semi-Automatic
  • Stable Performance, High Efficiency, Lower Energy Consumption, Low Noise, ECO Friendly, High Performance, Simple Control
  • Electric

Trade Information

  • 30 Unit Per Year
  • 01 Months
  • Yes
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • All India

Product Description

Technical Specifications:



MACHINE INFORMATION PUI - 80 HD PLC / CNC

GENERAL SPECIFICATION
L X B X H (mm). 1400 x 1100 x 1400
Approx. weight of the M/c (kg). : 1100
Total power req. M/c (kw). : 7 / 5
Max. Grinding Dia. (mm) : 50
Min. Grinding dia. (mm)* : 2
Min. - Max. Grinding length (mm). : 5 – 200

POWER SUPPLY
Power supply of M/c. : 3 Phase
Elect. motor for Control head (Hp/kw). : 0.5 / 0.37
Elect. motor for Grinding head (Hp/kw). : 3 / 2.2
Servo Motor Infeed / Dressing Slide (kw). : 1 / 0.5
Elect. motor for coolant pump (Hp/kw). : 0.15 / 0.11
Machine Lamp. : 220 v

DRESSING SLIDE
Stroke Range (mm). : 95
Hyd. Dressing Feeds/min (mm). : Variable Control (MPG)
Min. Dressing Depth (mm) : Variable Control (MPG)
Tilt of Dressing Slide. : ± 5.

CONTROL WHEEL HEAD
Control Wheel Size (D X W X d). : 200 X 80 X 76.2.
Control Wheel Grade. : A80 RB.
Control Wheel Speed. : 10 to 140 rpm (VFD)
Control Wheel Worn Out Dia. : 150.
Tilting of Control Wheel Head. : ± 5.
Tilting of Control Head (Vertical Axis). : ± 25.
Infeed Coarse Travel (mm). : Variable Control (MPG)
Infeed Fine Travel (mm). : Variable Control (MPG)

WHEEL HEAD
Grinding Wheel (D X W X d). : 300 X 80 X 140.
Grinding Wheel Worn Out Diameter. : 200.
Wheel Signature. : A60 L5VC11.
Grinding Wheel Spindle (rpm). : 1800 – 1900

COOLANT
Coolant pump Dis (lpm). : 36
Tank Size (ltr.). : 50
Coolant Oil. : Soluble Oil.
Oil – Water Ratio. : 1:10.

HYDRAULIC POWER PACK
Tank Size (ltr.) : NA

LUBRICATION
Manual / Automatic : Automatic

PLC/ CNC CONTROLLER PACKAGE
DELTA/SEMIENS : DELTA/SEMIENS




PITRODA UTILITY INDUSTRIES
