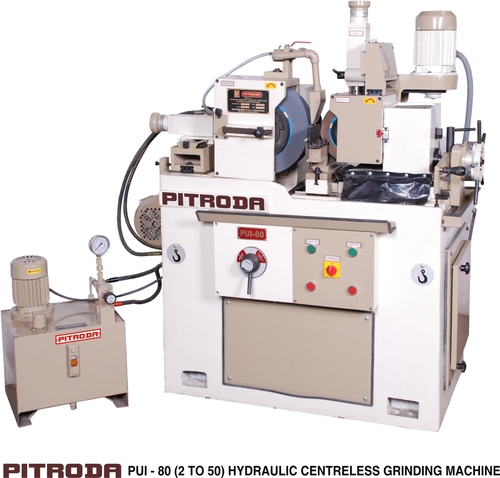

PUI 80 PUI 80 PUI 80 PUI 80
PUI 80
PUI 80 PUI 80 PUI 80

PUI 80

300000.00 INR/Unit

Product Details:

  • Product Type Centerless Grinding Machine
  • Computerized No
  • Automatic Grade Semi-Automatic
  • Control System Frequency Speed Control
  • Drive Type Hydraulic
  • Weight (kg) 1.2 Metric Ton
  • Supply Ability : 30 Unit Per Year
  • Click to view more
X

Price And Quantity

  • 300000.00 INR/Unit
  • 01 Unit

Product Specifications

  • No
  • Frequency Speed Control
  • 1.2 Metric Ton
  • Hydraulic
  • Semi-Automatic
  • Centerless Grinding Machine

Trade Information

  • 30 Unit Per Year
  • 02 Week
  • Yes
  • Africa, Middle East, Western Europe, Eastern Europe, Asia

Product Description

Technical Specifications:



Sr.No. Name PUI 80
1 General
1.Maximum distance between center 80mm
2.Maximum diameter of swing 2mm
3.Minimum grinding diameter 50mm
4.Minumum grinding with special arrangement 50mm

2 Wheel Head
1.Grinding wheel O/D 300mm
2.Grinding wheel I/D 140mm
3.Grinding wheel width 80mm
4.Grinding wheel worn out diameter 225mm
5.Grinding wheel rpm 1800rpm
6.Swivel of grinding wheel dresser side about Vertical axis ± 5 deg.
7.Electric motor 3 / 1440 h.p. / rpm
8.Coolant pump 0.15 / 2800 h.p. / rpm

3 Wheel Head
1.Regulating wheel O / D 200mm
2.Regulating wheel width 80mm
3.Regulating wheel I / D 76.2mm
4.Regulating wheel worn out diameter 150mm
5.Regulating wheel speed 18:32:30 rpm
6.Tilting of regulating wheel head ± 5 deg.
7.Complete regulating wheel head unit Swivel about Vertical axis ± 5 deg.
8.Electric motor 0.5 / 1440 h.p. / rpm
9.Over all dimensions W x L x H 1100 x 1400 x 1450 mm
10.Approximate weight 900 Kg

All weights & dimensions are approximate and are not binding as constantly improving designs.
*Extra equipment at extra cost
