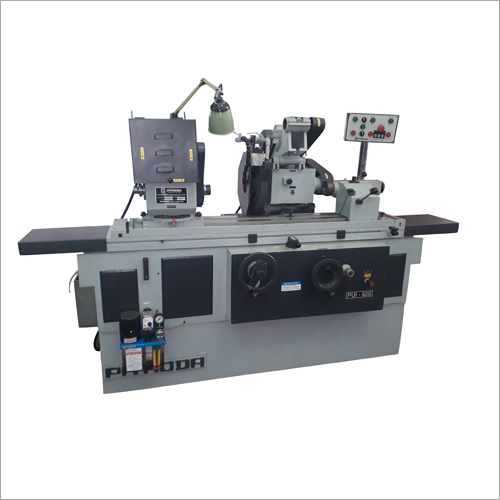

PUI 600 X 150 PUI 600 X 150 PUI 600 X 150 PUI 600 X 150
PUI 600 X 150
PUI 600 X 150 PUI 600 X 150 PUI 600 X 150

PUI 600 X 150

700000.00 - 800000.00 INR/Unit

Product Details:

  • Product Type Cylindrical Grinder
  • General Use Tools Manufacturer, Precsion Guages , Defence Industries
  • Capacity 600 Kg/hr
  • Weight (kg) 3 Metric Ton
  • Computerized Yes
  • Automatic Yes
  • Control System Manual
  • Supply Ability : 20 Unit Per Year
  • Click to view more
X

Price And Quantity

  • 700000.00 - 800000.00 INR/Unit
  • 01 Unit

Product Specifications

  • Yes
  • Mechanical
  • Yes
  • 600 Kg/hr
  • Cylindrical Grinder
  • 600
  • Tools Manufacturer, Precsion Guages , Defence Industries
  • 350x127x37
  • 150 Millimeter (mm)
  • 1800 RPM
  • 3 Metric Ton
  • Manual

Trade Information

  • 20 Unit Per Year
  • 01 Months
  • Yes

Product Description

Technical Specifications:



Sr.No. Name PUI 600
1 General
1.Maximum distance between center 600mm
2.Maximum diameter of swing 299mm
3.Minimum grinding diameter 125mm

2 Table
1. HYD Infinitely Varible Range of table feeds / min. 0.5/1.5 mm/mm
2. Maximum swivel of table 6°+2°=8° deg
3. Electric motor 3 phase/ 14440 rpm 440 /440 V 0.37 / 0.5 K.W./H.P.

3 Wheel Head
1. Grinding wheel (D x W x B) 356mm x 38.1mm x 127mm
2. Worn ot diametr 275mm
3. Grinding wheel spindle rpm 1800mm

4 Swivel of Wheel Head
1. Towards work head & tail stock 60°-45° deg.
2. Electric motor 3 phase/1440 rpm 400/440 V 2.2/3 K.W./H.P.
3. Maximum tra verse movement 150mm
4. Infeed per one division of hand wheel/division 0.01mm

5 Work Head
1. Number of spindle speed 4
2. Range of spindle speed 60/125/175/300 rpm
3. Morse taper in spindle 4MT
4. Work head swivel 90° deg.
5. Electric motor 3 phase/1440 rpm 400/440 V 0.37/0.15 K.W./H.P
6. Coolant pump motor 3 phase 2860 rpm/400-440 V 0.11/0.15 K.W./H.P.

6 Tail Stock
1. Morse Taper in spindle 4MT
2. Quill travel 25mm

7 Weight and Dimention
1. Weight (Approximate) 2600Kg
2. Length 2100mm
3. Width 1300mm
4. Height 1550mm

8 Work Head
1. Spindle diameter (60 x 250) 60mm
2. Maximum internal grinding depth 90mm
3. Minimum maximum diameter of hole grinding 18-100mm
4. Minimum maximum diameter of grinding wheel 14-40mm
5. Spindle quill speed 18000rpm
6. Electric motor 3 phase/2800 rpm 400/440 V 0.37/0.5 K.W./H.P

All weights & dimensions are approximate and are not binding as constantly improving designs.
*Extra equipment at extra cost
