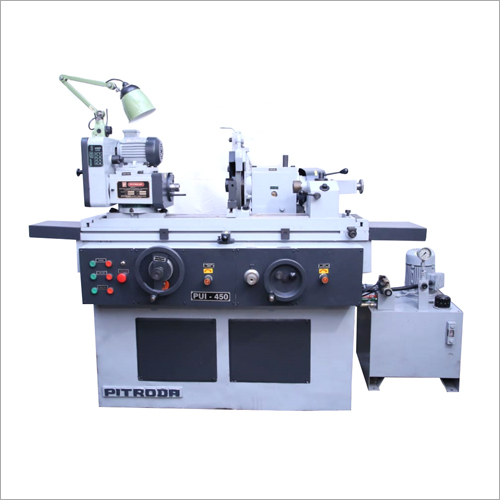

PUI 450X125

PUI 450X125

500000.00 - 600000.00 INR/Unit

Product Details:

  • Product Type Universal Cylindrical Grinder
  • General Use Machine tools Manufacturer, Tool Room, Tool Manufacturer, Reseach Lab, Defence Industries
  • Weight (kg) 2.5 Metric Ton
  • Computerized Yes
  • Automatic Yes
  • Control System PLC Control
  • Drive Type Electric
  • Supply Ability : 20 Unit Per Year
  • Click to view more
X

Price And Quantity

  • 1 Unit
  • 500000.00 - 600000.00 INR/Unit

Product Specifications

  • 1800 Km/hr
  • 2.5 Metric Ton
  • Machine tools Manufacturer, Tool Room, Tool Manufacturer, Reseach Lab, Defence Industries
  • 1year
  • 450
  • Universal Cylindrical Grinder
  • Electric
  • Yes
  • PLC Control
  • 125 Millimeter (mm)
  • Yes

Trade Information

  • 20 Unit Per Year
  • 01 Months
  • Yes

Product Description

Technical Specifications:



Sr.No. Name PUI 450
1 General
1.Maximum distance between center 450mm
2.Maximum diameter of swing 249mm
3.Maximum grinding diameter 100mm

2 Table
1. HYD Infinitely Varible Range of table feeds / min. 0.5/1.5 mm/mm
2. Maximum swivel of table 7°+3°=10°deg
3. Electric motor 3 phase/ 14440 rpm 440 /440 V 0.37 / 0.5 K.W./H.P.

3 Wheel Head
1. Grinding wheel (D x W x B) 300 x 25 x 127mm
2. Worn ot diametr 250mm
3. Grinding wheel spindle rpm 2100rpm


4 *Swivel of Wheel Head
1. Towards work head & tail stock 60°-45°deg
2. Electric motor 3 phase/1440 rpm 400/440 V 1.5/2 K.W./H.P.
3. Maximum tra verse movement 125mm
4. Infeed per one division of hand wheel/division 0.01mm

5 Work Head
1. Number of spindle speed 4
2. Range of spindle speed 70/130/140/350rpm
3. Morse taper in spindle 3MT
4. Work head swivel 90°deg
5. Electric motor 3 phase/1440 rpm 400/440 V 0.37/0.15K.W./H.P.
6. Coolant pump motor 3 phase 2860 rpm/400-440 V 0.11/0.15K.W./H.P.

6 Tail Stock
1. Morse Taper in spindle 3MT
2. Quill travel 25mm

7 Weight and Dimention
1. Weight (Approximate) 1500Kg
2. Length 1700mm
3. Width 1100mm
4. Hight 1450mm

8 Work Head
1. Spindle diameter (60 x 250) 60mm
2. Maximum internal grinding depth 90mm
3. Minimum maximum diameter of hole grinding 18-100mm
4. Minimum maximum diameter of grinding wheel 14-40mm
5. Spindle quill speed 18000rpm
6. Electric motor 3 phase/2800 rpm 400/440 V 0.37/0.5K.W./H.P.

All weights & dimensions are approximate and are not binding as constantly improving designs.
*Extra equipment at extra cost




PITRODA UTILITY INDUSTRIES
