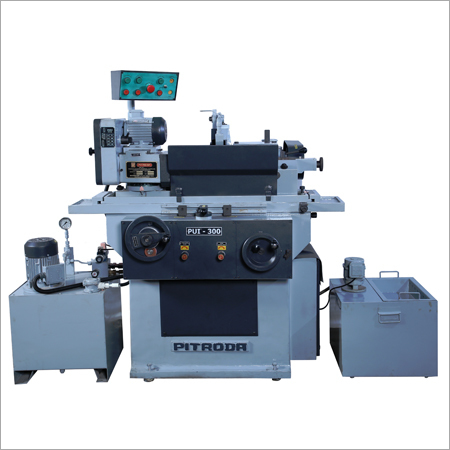

PUI 300X125 PUI 300X125 PUI 300X125 PUI 300X125
PUI 300X125
PUI 300X125 PUI 300X125 PUI 300X125

PUI 300X125

400000.00 - 500000.00 INR/Unit

Product Details:

  • Product Type Cylindrical Grinder
  • General Use Precsion Tools Room, Tool Manufacturer, Job Production
  • Type Universal Cylindrical Grinding Machine, Hydraulic Grinding Machine
  • Computerized No
  • Automatic Yes
  • Control System Manual
  • Drive Type Mechanical
  • Supply Ability : 20 Unit Per Year
  • Click to view more
X

Price And Quantity

  • 400000.00 - 500000.00 INR/Unit
  • 01 Unit

Product Specifications

  • Mechanical
  • 125 Millimeter (mm)
  • Manual
  • Universal Cylindrical Grinding Machine, Hydraulic Grinding Machine
  • 300
  • Precsion Tools Room, Tool Manufacturer, Job Production
  • Cylindrical Grinder
  • No
  • Yes
  • 1Year
  • 32 m/s

Trade Information

  • 20 Unit Per Year
  • 1-2 Months
  • Yes
  • Africa, Middle East, Central America, Asia

Product Description

Technical Specifications:



Sr.No. Name PUI 300
1 General
1.Maximum distance between center 300mm
2.Maximum diameter of swing 249mm
3.Maximum grinding diameter 100mm

2 Table
1.HYD Infinitely Varible Range of table feeds / min. 0.5/1.5 mm/mm
2.Maximum swivel of table 7°+3°=10°deg
3.Electric motor 3 phase/ 14440 rpm 440 /440 V 0.37 / 0.5K.W./H.P.

3 Wheel Head
1.Grinding wheel (D x W x B) 300 x 25 x 127mm
2.Worn ot diametr 250mm
3.Grinding wheel spindle rpm 2100rpm

4 *Swivel of Wheel Head
1.Towards work head & tail stock 60°-45°deg.
2.Electric motor 3 phase/1440 rpm 400/440 V 1.5/2K.W./H.P.
3.Maximum tra verse movement 125mm
4.Infeed per one division of hand wheel/division 0.01mm

5 Work Head
1.Number of spindle speed 4
2.Range of spindle speed 70/130/140/350rpm
3.Morse taper in spindle 3MT
4.Work head swivel 90°deg.
5.Electric motor 3 phase/1440 rpm 400/440 V 0.37/0.15K.W./H.P.
6.Coolant pump motor 3 phase 2860 rpm/400-440 V 0.11/0.15K.W./H.P.

6 Tail Stock
1.Morse Taper in spindle 3MT
2.Quill travel 25mm

7 Weight and Dimention
1.Weight (Approximate) 1300Kg
2.Length 1350mm
3.Width 1050mm
4.Hight 1400mm

8 Work Head
1.Spindle diameter (60 x 250) 60mm
2.Maximum internal grinding depth 90mm
3.Minimum maximum diameter of hole grinding 18-100mm
4.Minimum maximum diameter of grinding wheel 14-40mm
5.Spindle quill speed 18000rpm
6.Electric motor 3 phase/2800 rpm 400/440 V 0.37/0.5K.W./H.P.

All weights & dimensions are approximate and are not binding as constantly improving designs.
*Extra equipment at extra cost
