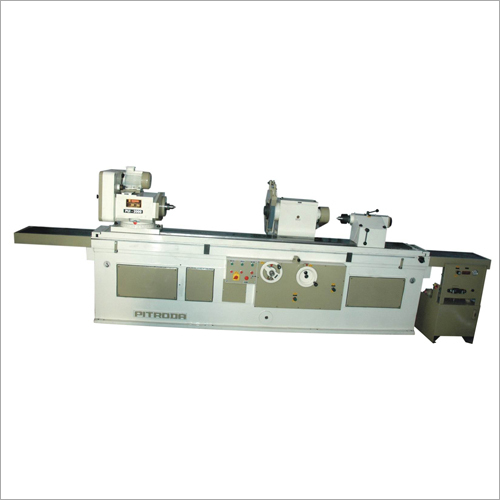

Cylindrical Grinding Machines
1700000.00 INR/Unit
Product Details:
- Product Type Cylindrical Grinding Machine
- General Use Roll Grinding, Tool room, Job Production
- Weight (kg) 6-7 Metric Ton
- Computerized No
- Automatic No
- Control System Manual
- Drive Type Mechanical
- Click to View more
X
Cylindrical Grinding Machines Price And Quantity
- 1700000.00 - 2000000.00 INR/Unit
- 1 Unit
- 1700000.00 INR/Unit
Cylindrical Grinding Machines Product Specifications
- Manual
- 2000
- 250 Millimeter (mm)
- Cylindrical Grinding Machine
- 6-7 Metric Ton
- Mechanical
- No
- 1 year
- Roll Grinding, Tool room, Job Production
- 500x203x50
- No
Cylindrical Grinding Machines Trade Information
- Cash Advance (CA) Cash in Advance (CID)
- 03 Unit Per Year
- 04 Months
- All India
Product Description
Technical Specifications:
| Sr.No. | Name | PUI 2000 |
| 1 | General | |
| 1.Maximum distance between center | 2000mm | |
| 2.Maximum diameter of swing | mm | |
| 3.Minimum grinding diameter | mm | |
| 2 | Table | |
| 1. HYD Infinitely Varible Range of table feeds / min. | 0.5/1.5 mm/mm | |
| 2. Maximum swivel of table | 6°+2°=8° deg | |
| 3. Electric motor 3 phase/ 14440 rpm 440 /440 V | 0.37 / 0.5 K.W./H.P. | |
| 3 | Wheel Head | |
| 1. Grinding wheel (D x W x B) | 360mm x 38.1mm x 127mm | |
| 2. Worn ot diametr | 275mm | |
| 3. Grinding wheel spindle rpm | 1800mm | |
| 4 | Swivel of Wheel Head | |
| 1. Towards work head & tail stock | 60°-45° deg. | |
| 2. Electric motor 3 phase/1440 rpm 400/440 V | 2.2/3 K.W./H.P. | |
| 3. Maximum tra verse movement | 150mm | |
| 4. Infeed per one division of hand wheel/division | 0.01mm | |
| 5 | Work Head | |
| 1. Number of spindle speed | 4 | |
| 2. Range of spindle speed | 60/125/175/300 rpm | |
| 3. Morse taper in spindle | 4MT | |
| 4. Work head swivel | 90° deg. | |
| 5. Electric motor 3 phase/1440 rpm 400/440 V | 0.37/0.15 K.W./H.P | |
| 6. Coolant pump motor 3 phase 2860 rpm/400-440 V | 0.11/0.15 K.W./H.P. | |
| 6 | Tail Stock | |
| 1. Morse Taper in spindle | 4MT | |
| 2. Quill travel | 25mm | |
| 7 | Weight and Dimension | |
| 1. Weight (Approximate) | 4000Kg | |
| 2. Length | 2900mm | |
| 3. Width | 1300mm | |
| 4. Height | 1550mm | |
| All weights & dimensions are approximate and are not binding as constantly improving designs. | ||
| *Extra equipment at extra cost | ||
