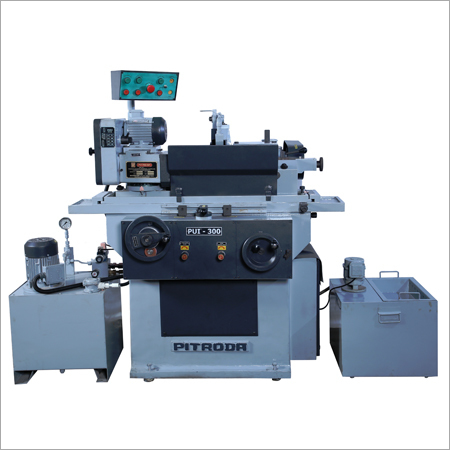

INTERNAL BORE GRINDING MACHINES
INTERNAL BORE GRINDING MACHINES INTERNAL BORE GRINDING MACHINES INTERNAL BORE GRINDING MACHINES
INTERNAL BORE GRINDING MACHINES INTERNAL BORE GRINDING MACHINES INTERNAL BORE GRINDING MACHINES INTERNAL BORE GRINDING MACHINES

INTERNAL BORE GRINDING MACHINES

400000.00 INR/Unit

Product Details:

  • Product Type Cylindrical Grinder
  • General Use Precsion Tools Room, Tool Manufacturer, Job Production
  • Type Universal Cylindrical Grinding Machine, Hydraulic Grinding Machine
  • Computerized No
  • Automatic Yes
  • Control System Manual
  • Drive Type Mechanical
  • Supply Ability : 20 Unit Per Year
  • Click to view more
X

Price And Quantity

  • 400000.00 - 500000.00 INR/Unit
  • 1 Unit
  • 400000.00 INR/Unit

Product Specifications

  • Manual
  • Yes
  • No
  • 1Year
  • 300
  • Cylindrical Grinder
  • Mechanical
  • Precsion Tools Room, Tool Manufacturer, Job Production
  • Universal Cylindrical Grinding Machine, Hydraulic Grinding Machine
  • 32 m/s
  • 125 Millimeter (mm)

Trade Information

  • Cash in Advance (CID), Cash Advance (CA)
  • 20 Unit Per Year
  • 1-2 Months
  • Yes
  • Africa, Middle East, Central America, Asia
  • All India

Product Description

Technical Specifications:



Sr.No. Name PUI 300
1 General
1.Maximum distance between center 300mm
2.Maximum diameter of swing 249mm
3.Maximum grinding diameter 100mm

2 Table
1.HYD Infinitely Varible Range of table feeds / min. 0.5/1.5 mm/mm
2.Maximum swivel of table 7°+3°=10°deg
3.Electric motor 3 phase/ 14440 rpm 440 /440 V 0.37 / 0.5K.W./H.P.

3 Wheel Head
1.Grinding wheel (D x W x B) 300 x 25 x 127mm
2.Worn ot diametr 250mm
3.Grinding wheel spindle rpm 2100rpm

4 *Swivel of Wheel Head
1.Towards work head & tail stock 60°-45°deg.
2.Electric motor 3 phase/1440 rpm 400/440 V 1.5/2K.W./H.P.
3.Maximum tra verse movement 125mm
4.Infeed per one division of hand wheel/division 0.01mm

5 Work Head
1.Number of spindle speed 4
2.Range of spindle speed 70/130/140/350rpm
3.Morse taper in spindle 3MT
4.Work head swivel 90°deg.
5.Electric motor 3 phase/1440 rpm 400/440 V 0.37/0.15K.W./H.P.
6.Coolant pump motor 3 phase 2860 rpm/400-440 V 0.11/0.15K.W./H.P.

6 Tail Stock
1.Morse Taper in spindle 3MT
2.Quill travel 25mm

7 Weight and Dimention
1.Weight (Approximate) 1300Kg
2.Length 1350mm
3.Width 1050mm
4.Hight 1400mm

8 Work Head
1.Spindle diameter (60 x 250) 60mm
2.Maximum internal grinding depth 90mm
3.Minimum maximum diameter of hole grinding 18-100mm
4.Minimum maximum diameter of grinding wheel 14-40mm
5.Spindle quill speed 18000rpm
6.Electric motor 3 phase/2800 rpm 400/440 V 0.37/0.5K.W./H.P.

All weights & dimensions are approximate and are not binding as constantly improving designs.
*Extra equipment at extra cost
