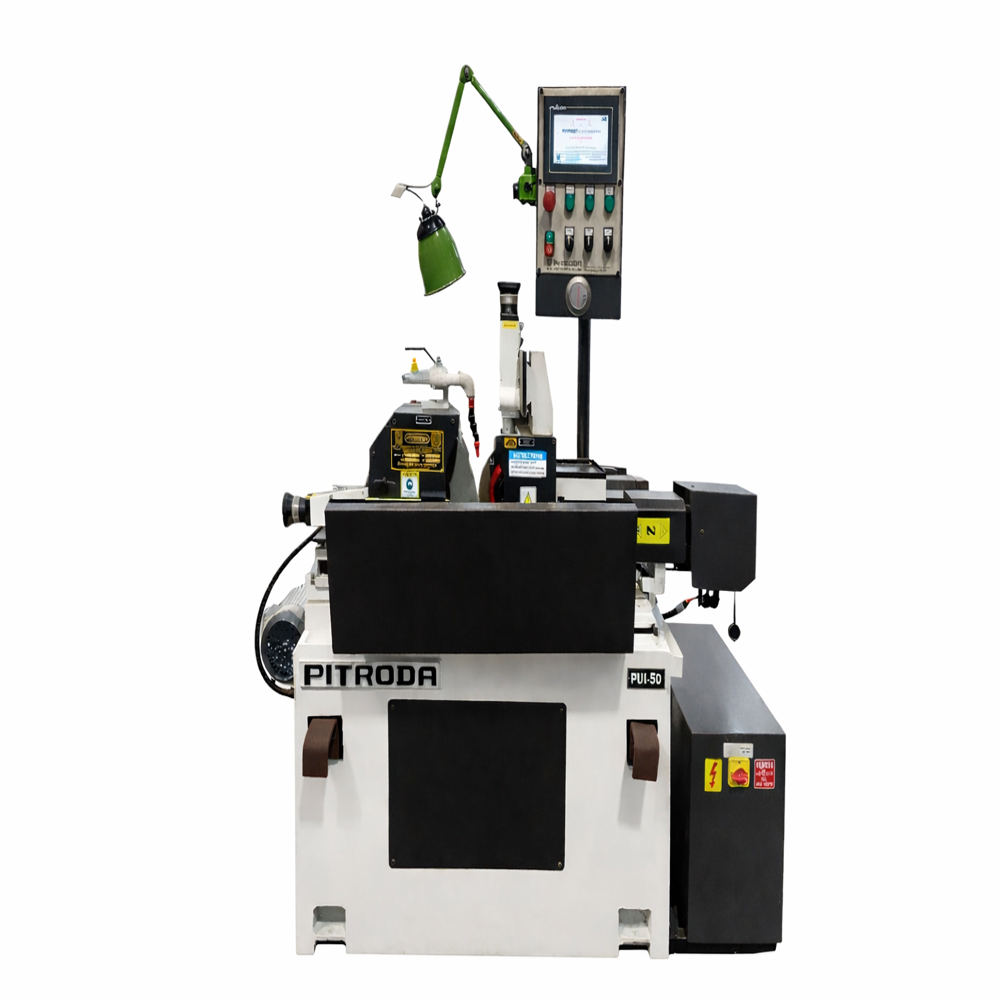

CENTERLESS GRINDING MACHINES

200000.00 INR/Unit

Request To Call Back Send Inquiry

Price And Quantity

Sr.No.	Name	PUI 50
1	General
	1.Maximum distance between center	50mm
	2.Maximum diameter of swing	1.5mm
	3.Minimum grinding diameter	50mm
	4.Minumum grinding with special arrangement	50mm

2	Wheel Head
	1.Grinding wheel O/D	250mm
	2.Grinding wheel I/D	76.2mm
	3.Grinding wheel width	50mm
	4.Grinding wheel worn out diameter	175mm
	5.Grinding wheel rpm	2100rpm
	6.Swivel of grinding wheel dresser side about Vertical axis	± 5 deg.
	7.Electric motor	2 / 1440 h.p. / rpm
	8.Coolant pump	0.15 / 2800 h.p. / rpm

3	Wheel Head
	1.Regulating wheel O / D	175mm
	2.Regulating wheel width	50mm
	3.Regulating wheel I / D	76.2mm
	4.Regulating wheel worn out diameter	125mm
	5.Regulating wheel speed	18:32:30 rpm
	6.Tilting of regulating wheel head	± 5 deg.
	7.Complete regulating wheel head unit Swivel about Vertical axis	± 5 deg.
	8.Electric motor	0.5 / 1440 h.p. / rpm
	9.Over all dimensions W x L x H	1100 x 1400 x 1400 mm
	10.Approximate weight	800 Kg

All weights & dimensions are approximate and are not binding as constantly improving designs.
*Extra equipment at extra cost
